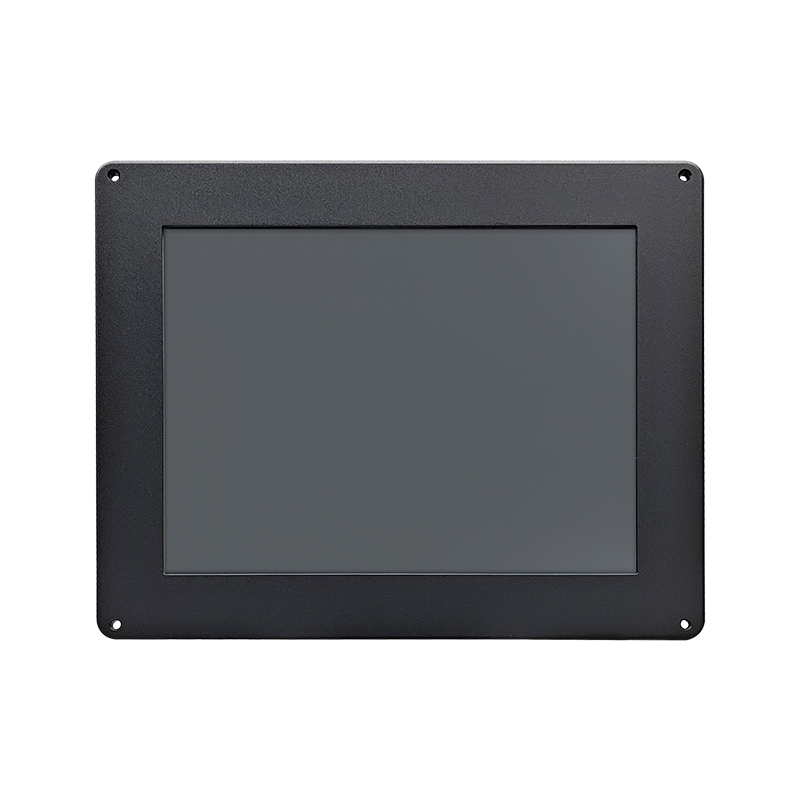

12.1" IP65 Industrial All-in-One PC with Resistive Touch 1000nits Display

12.1" IP65 Industrial All-in-One PC with Resistive Touch 1000nits Display

Marka Adı: Sihovision
Model Numarası: SC121W
Moq: 1 parça
fiyat: Pazarlık edilebilir
Paketleme Ayrıntıları: 1pcs/ctn 44 × 44 × 16cm, 6kg
Ödeme Şartları: T/T, PayPal, L/C, D/A, D/P, Western Union, MoneyGram
Detay Bilgi
Menşe yeri:
Shenzhen, Çin
Sertifika:
CE,FCC,RoHS
Ürün adı:
12.1 inç tam su geçirmez panel bilgisayar
İşlemci:
Celeron J1900
IP sınıfı:
IP65
Parlaklık:
1000cd/m², güneş ışığı okunabilir
Dokunmak:
Öngörülen kapasitif dokunuş (10 puana kadar)
Çözünürlük:
1024*768
En boy oranı:
4: 3
Görünüm açısı:
85 °/85 °/85 °/85 ° (R/L/U/D)
Vurgulamak:

12.1 inch IP65 industrial PC

,

resistive touch panel PC

,

1000nits brightness all-in-one PC

Ürün Açıklaması

12.1" IP65 Industrial All-in-One PC with Resistive Touch 1000nits Display


Durability & Protection:

  • Aluminum construction: Lightweight yet strong frame with heat dissipation capabilities
  • Sandblasting oxidation: Creates a uniform, corrosion-resistant surface finish
  • IP67 rating: Complete protection against dust and can withstand water immersion up to 1 meter for 30 minutes
  • UV/anti-discoloration treatment: Prevents degradation from sun exposure

Display Quality:

  • Industrial LCD: Built for harsh environments rather than consumer use
  • 1000 nits brightness: Extremely bright - typical indoor displays are 200-400 nits, making this easily readable in direct sunlight
  • PWM brightness control: Software-adjustable brightness for optimal viewing

Touch Interface:

  • 5-wire resistive touchscreen: More durable than capacitive, works with gloves/stylus, pressure-sensitive
  • Anti-glare coating: Reduces reflections and eye strain
  • EETI controller: Reliable touch processing system
  • Optical bonding: Eliminates air gap between LCD and touch layer for better clarity and durability

Industrial Features:

  • Continuous operation: Designed for 24/7 use
  • Wide temperature range: -20°C to 70°C (-4°F to 158°F) operation
  • Serviceable design: Waterproof seals can be opened for maintenance without compromising protection


Specification

Model:SC121W
PC
CPU Intel® Celeron J1900, 4 Cores, 4 Threads, Base 2.0 GHz, Turbo 2.7 GHz, 4MB Cache, Fanless
Other CPU Optional
Chipset Intel® Bay Trail J1900 Embedded Chipset
Memory 1x DDR3L 1333/1600MHz Max 8GB
Storage Capacity 1x MSATA, 1x SATA
Graphics Onboard integrated Intel HD4000 graphics core
Audio Onboard Realtek ALC662HD audio decoding controller
Network Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network WIFI, Bluetooth, 4G, GPS optional
Expansion Slots 1xMiniPCIe, WIFI,Bluetooth /4G Expansion Module
Preinstalled OS Windows 10 Pro 64bit
Operation System Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
MI6 metal waterproof interface
USB 2x IP65 USB 3.0, 2x IP65 USB 2.0
COM 3x IP65 RS232
LAN 2x IP65 RJ45
GPS 1x IP65 GLONASS/GPS Antenna
Power input 1x IP65 DC9-24V
Other 1x IP65 Power on/off button
LCD panel
Panel size 12.1"
Display active area 245.76(W)x184.32(H) mm / 9.676x7.257 in
Resolution 1024*768
Aspect ratio 4:3
Support Color 16.7M colors
Brightness (cd/m²) 1000 nits
Contrast ratio 800:1
View angle 85°/85°/85°/85° (R/L/U/D)
Support Color 16.7M
Backlight WLED, 50K hours
Touch panel
Touchscreen Type 5 wires resistive touch
Surface Hardness 3H
Surface treatment Anti glare
Luminousness ≥85%
Touch controller IC EETI 80
Available touch drivers Windows, Linux, Android, Mac, etc
Touch bonding Air Bonding (Optical bonding optional)
Touch optional Projected Capacitive Touch (up to 10 points ), non touch , IR touch optional
Power Supply
Working voltage DC 9-24V
Power consumption 25W
Power adapter AC 100 ~ 240V input and DC +12V@8A MAX output, 96W
Enclosure
Material Aluminium alloy bezel+ Zinc Plating cold rolled steel rear housing+Aluminium alloy cooling fin
Finish Front bezel, cooling fin: sandblasting+hard anodizing, UV-protection and Anti-discoloration treatment
Rear housing: powder coated
Color Black, Silver, White optional
VESA mounting VESA mount 75*75/100*100mm
IP grade Full IP65 waterproof
Cooling system Passive - Fanless
Operating Environment
Temperature Range operating: -20 °C(-4℉) to 70°C(158℉)
storage: -30 °C
(-22℉) to 80°C(176℉)
Relative humidity Up to 100% at all relevant temperatures, non-condensing
Vibration GB/T 2423.10-2019
Shock GB2423.5
EMC Class B
Packing Details
Product weight Net weight 3.7kg
Product Dimension 318×256×50mm
Packing info 1pcs/ctn  44×44×16cm 5.5kg
2pcs/ctn  45×45×30cm 12kg
Accessories Power supply, waterproof USB cables, waterproof LAN cable, waterproof COM cable, waterproof GLONASS/GPS Antenna
Other
Warranty 1 year warranty
Certificate CE, FCC, RoHS



Applications

It is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, truck, food Industry, security Turnstile, chemical manufacturing, tennis courts, sports ground and other outdoor applications.


Advantages

1. Working temperature range is -10°C to 60°C.


2. Industrial LCD panel is wide viewing angle, high nits and true color.


3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.


4. High performance motherboard, 7x24 continuous operation.


5. Symmetric design can be utillized in portrait mode with style.


6. Heat sink in back case great for heat dissipation and beatiful appearance.


7. Working voltage is wide range 9-36V, suitable for various applications.



Attention of warranty
1. First year warranty: by free
2. 2nd to 3rd year warranty: maintaining by some charges.
